The DC series mast are made from 6061 aluminum. The mast are sch. 40 aluminum pipe with an 8" x 8" x 3/4" thick base plate w/4 - 9/16" holes. They are threaded together and back welded and fins added. The top adapter is aluminum with 3 holes that can only be placed in 1 position when the 3 bolts are used. The pin or shaft for the antenna is 303 stainless steel with 5/8" x 11 threads per inch. The coating is a thick epoxy spray paint.
The DC-LP is an outdoor light pole that has been adapted to the same specs as the rest of the poles. They are spun 6061 aluminum that is anodized - no paint. They have a 10" x 10" base with 4- 1" holes
DC-.5M-S, - 1/2 Meter GPS Mast, (shorty)
$680.00
DC-1M-F, - 1 meter GPS Mast
$740.00
DC-1.5M-F, - 1-1/2 meter GPS Mast
$790.00
DC-LP, - 2.3 Meter GPS Mast
$1,425.00
DC-DG, - Drill Jig for DC series Mast $625.00
Drill Jig is used for all of the DC series masts
HWD-2-12, 4 pc. Bolt set w/nuts and Washers $155.50
With Double Wedge Anchors
HWD-2-16, 4 pc. Bolt set w/nuts and Washers $175.75
With Triple Wedge Anchors

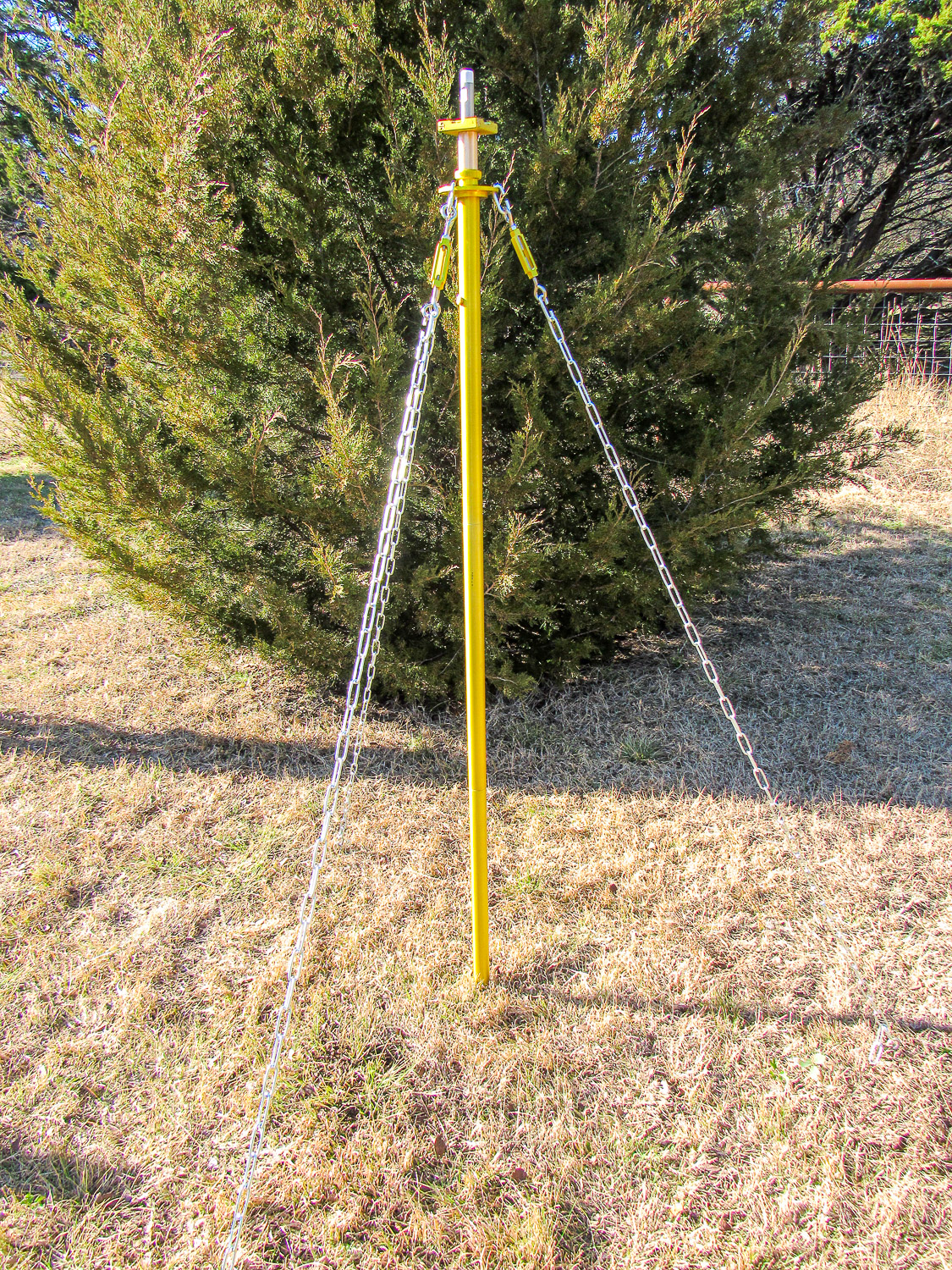

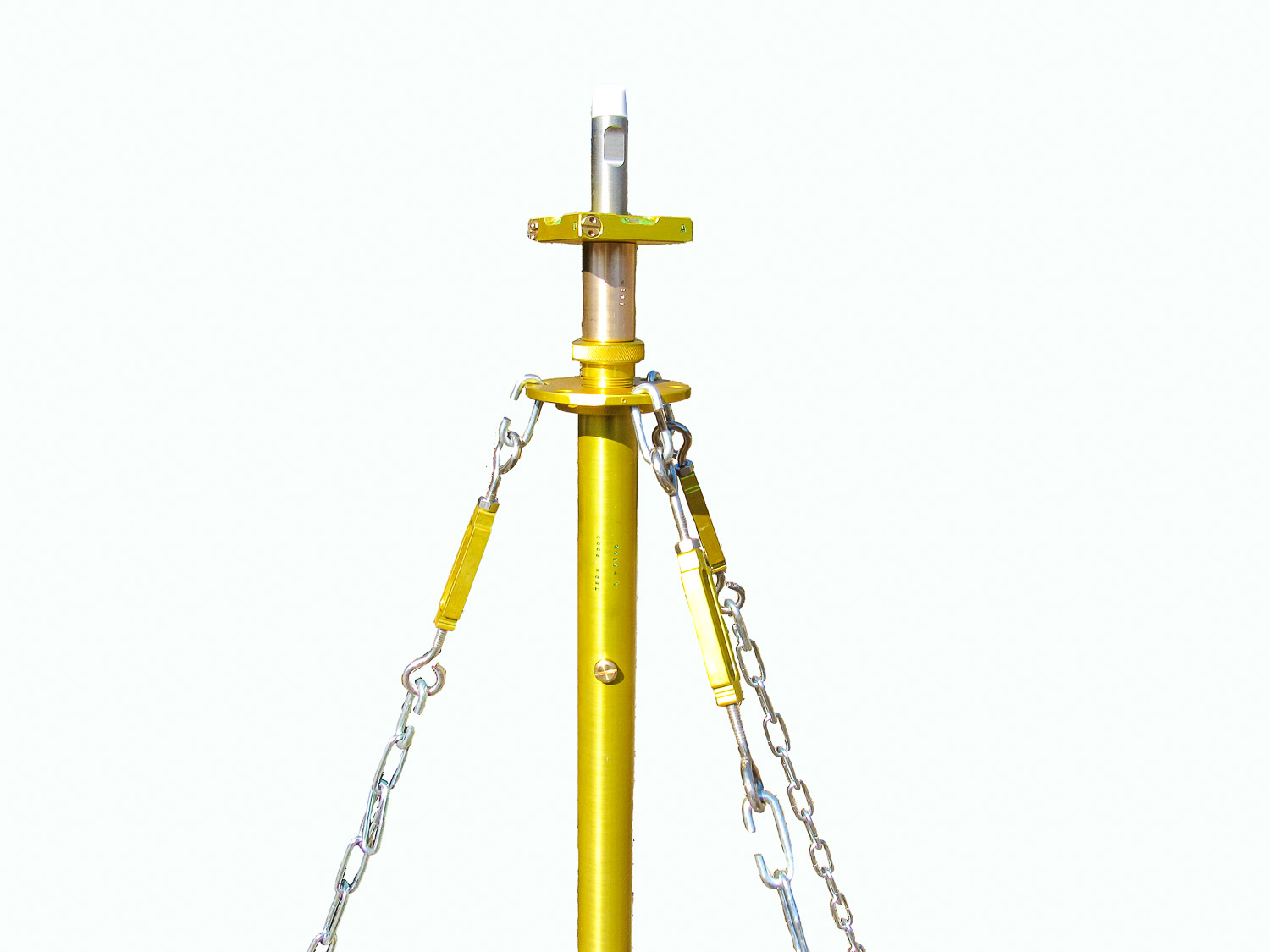

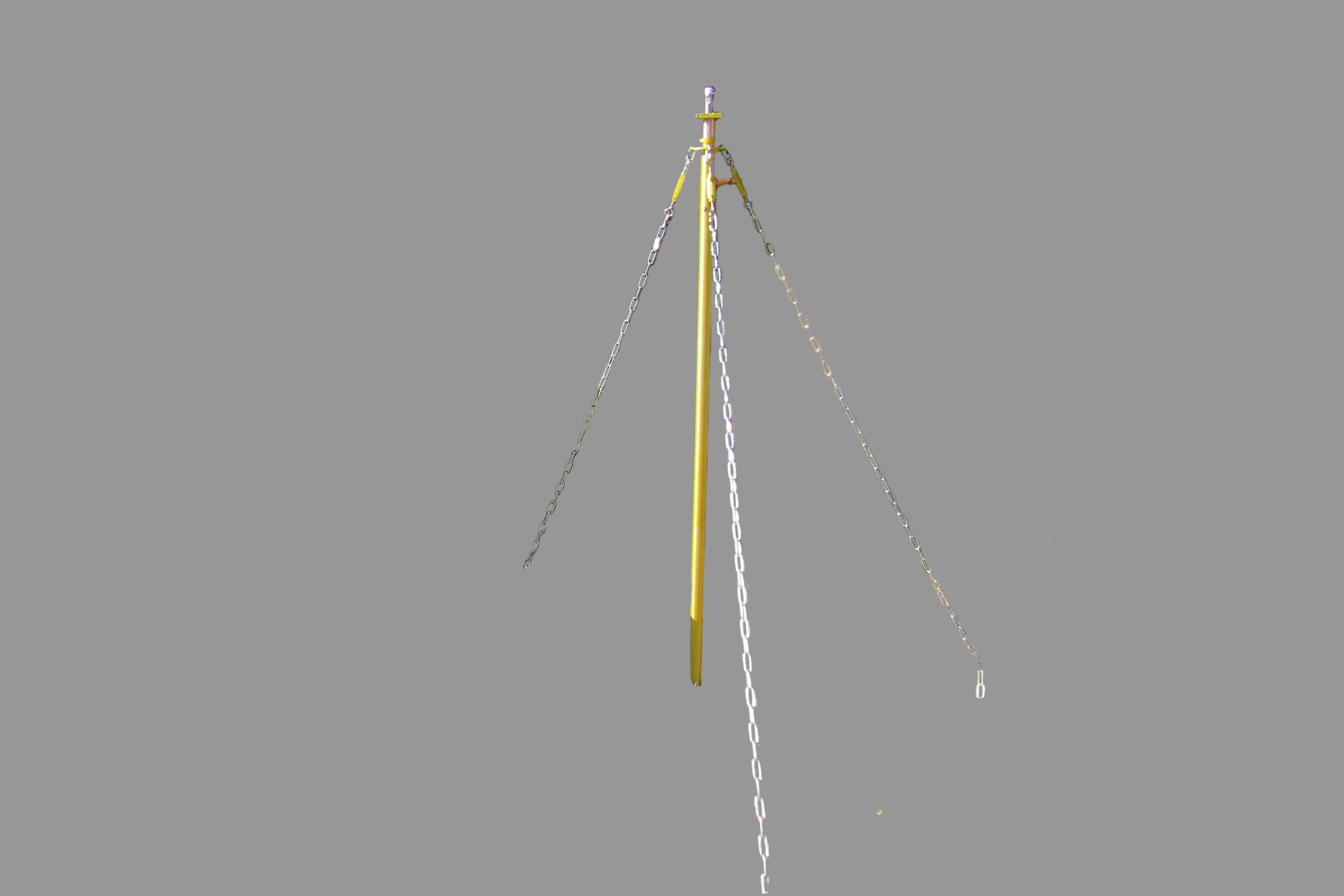

T-2K Campaign Mast - Used to run a campaign on multiple survey markers - $640.75
Precision Segmented Jacob's Staff
Sold exclusively by ASC Scientific
(made by Tech-2000)
www.ascscientific.com

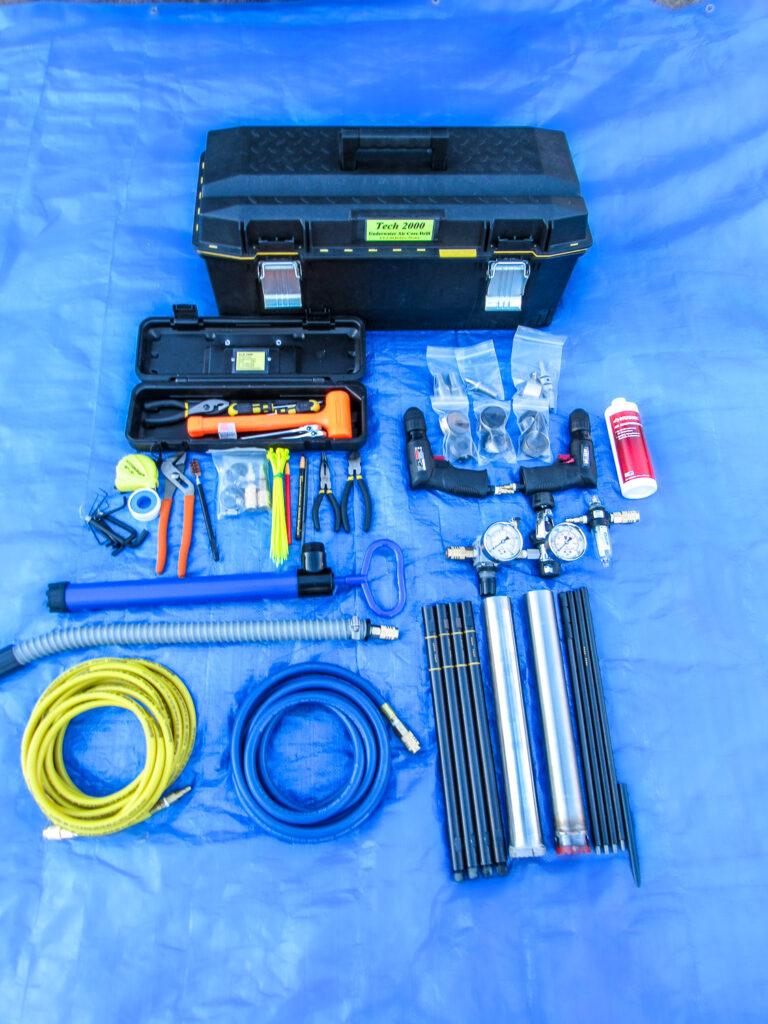

Underwater Drills
Prices Start at... Can purchase extra bits, extension rods, etc.
